LC Stecker vs. LC APC Singlemode Patchkabel: Understanding the Differences and Applications
In the ever-evolving world of fiber optic communications, choosing the right components is crucial for ensuring optimal performance, reliability, and efficiency. Among the many options available, LC (Lucent Connector) connectors and LC APC (Angled Physical Contact) single-mode patch cables are prominent choices. This article provides an insightful comparison between LC Stecker and LC APC single-mode patch cables, exploring their technical differences, applications, advantages, and considerations for selection.
Introduction to Fiber Optic Connectors
Fiber optic connectors play a vital role in the performance of fiber optic networks. They are used to terminate the ends of fiber optic cables, enabling quick and reliable connections. The LC connector, with its small form factor and high performance, is widely used in various applications, from telecommunications to data centers. Understanding the nuances between standard LC Stecker connectors and LC APC single-mode patch cables is essential for making informed decisions.
Technical Differences

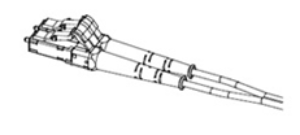

LC Stecker
1. Connector Type: The lc stecker is a standard Lucent Connector known for its compact size and high precision.
2. Ferrule Endface: LC connectors have a flat or slightly domed ferrule end face, providing a physical contact (PC) or ultra-physical contact (UPC) finish.
3. Insertion Loss: Typically around 0.1-0.3 dB, which ensures low signal loss and high performance.
4. Return Loss: Generally around -55 dB for UPC connectors, indicating a low level of reflected signal and higher performance in signal integrity.

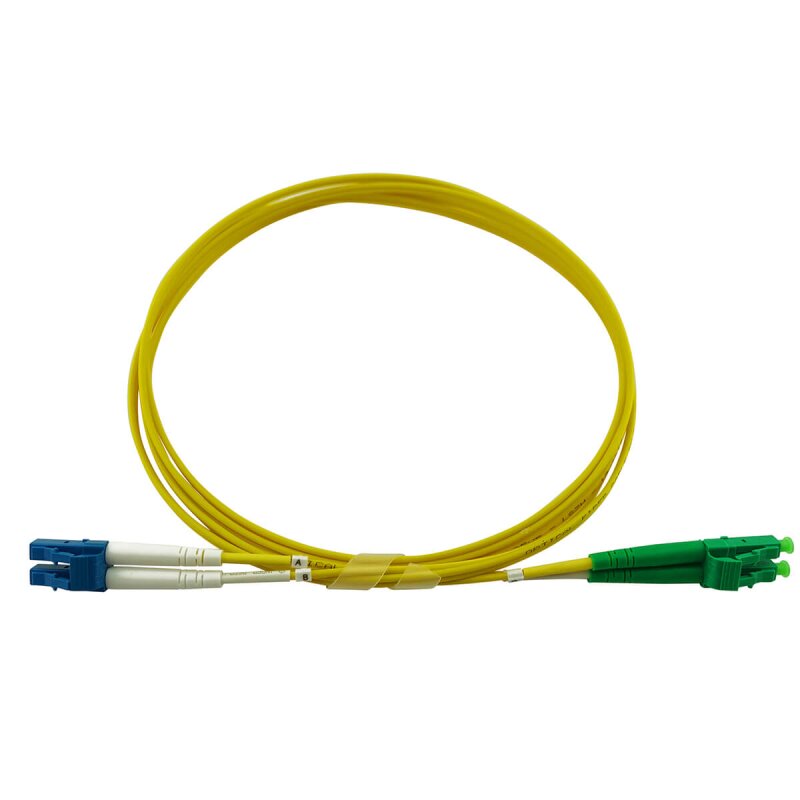

LC APC Singlemode Patchkabel
1. Connector Type: The LC APC connector is similar to the standard LC but features an angled ferrule end face. The angle is usually 8 degrees.
2. Ferrule Endface: The angled physical contact (APC) finish provides better performance in terms of return loss compared to PC or UPC finishes.
3. Insertion Loss: Similar to LC Stecker, typically around 0.2-0.3 dB.
4. Return Loss: Significantly higher, usually around -65 dB to -70 dB, reducing the amount of light reflected into the source and improving overall signal quality.
How They Work
LC Stecker
LC Stecker connectors use a straightforward push-pull mechanism, making them easy to install and remove. The flat or slightly domed ferrule end face ensures good physical contact, minimizing signal loss. These connectors are ideal for high-density applications due to their compact size and reliable performance.
LC APC Singlemode Patchkabel
The lc apc connectors use an angled end face to reduce back reflections. This is particularly important in single-mode applications where back reflections can cause significant signal degradation. The angle of the ferrule helps ensure that any reflected light is directed into the cladding rather than back into the core, enhancing signal integrity and reducing noise.
Applications
LC Stecker
1. Data Centers: Ideal for high-density environments where space is at a premium. LC connectors’ compact size allows for more connections in a smaller area.
2. Telecommunications: Widely used in telecommunication networks for their reliable performance and ease of use.
3. Enterprise Networks: Suitable for various enterprise applications, including backbone connections and high-speed data transmission.
LC APC Singlemode Patchkabel
1. Long-Haul Telecommunications: Essential for long-distance fiber optic communication where signal integrity is critical.
2. FTTx (Fiber to the X): Used in applications like Fiber to the Home (FTTH) and Fiber to the Building (FTTB) where high return loss performance is crucial.
3. Optical Splitters and WDM Systems: Ideal for use in passive optical networks and wavelength-division multiplexing systems where minimizing reflections is vital.
Advantages Over Each Other
LC Stecker
1. Ease of Installation: The straightforward design makes LC connectors easy to install and maintain.
2. Cost-Effective: Generally, LC Stecker connectors are less expensive than APC connectors, making them a cost-effective solution for many applications.
3. Versatility: Suitable for a wide range of applications, from data centers to telecommunications.
LC APC Singlemode Patchkabel
1. Superior Return Loss: The angled end face significantly reduces back reflections, making APC connectors ideal for high-performance single-mode applications.
2. Enhanced Signal Integrity: Better return loss performance translates to higher signal quality and reduced noise, which is crucial for long-distance and high-bandwidth applications.
3. Future-Proofing: As networks evolve and the demand for higher data rates increases, APC connectors provide a more future-proof solution with their superior performance characteristics.
Considerations for Selection
When choosing between LC Stecker and LC APC single-mode patch cables, consider the following factors:
1. Application Requirements: Determine the specific needs of your application. If minimal back reflection and superior signal integrity are crucial, LC APC is the better choice. For general-purpose use, LC Stecker may suffice.
2. Budget: Consider the cost implications. While LC APC connectors offer better performance, they are typically more expensive. Balance performance needs with budget constraints.
3. Distance: For long-distance applications, the reduced back reflection of LC APC connectors can make a significant difference in maintaining signal quality.
4. Installation and Maintenance: Evaluate the ease of installation and maintenance. LC Stecker connectors are generally easier to handle, which can be beneficial in high-density environments.
Conclusion
Both LC Stecker and LC APC single-mode patch cables play critical roles in fiber optic networks, each offering unique advantages. LC Stecker connectors are versatile, cost-effective, and suitable for a wide range of applications, particularly where high density and ease of use are essential. On the other hand, LC APC single-mode patch cables excel in scenarios where superior return loss and signal integrity are paramount, making them indispensable for long-haul telecommunications, FTTx applications, and high-performance optical networks.
Understanding the differences between these connectors and their respective applications can help network engineers and administrators make informed decisions, ensuring optimal performance and reliability for their specific needs. Whether you’re upgrading a data center, expanding a telecommunications network, or implementing a high-speed enterprise solution, choosing the right type of connector is key to achieving your goals.
In summary, both LC Stecker and LC APC single-mode patch cables offer valuable benefits. By carefully evaluating your application requirements, budget, and performance needs, you can select the most appropriate connector to support your network’s current and future demands.
