Cable Gland Components are vital accessories in electrical installations, designed to secure and protect cables entering various types of equipment. They provide sealing, mechanical support, and strain relief, ensuring that the cables remain undamaged and connections stay secure. To fully grasp how a cable gland functions, it’s important to understand its individual components. These components are typically designed with precision to withstand environmental factors like dust, moisture, and extreme temperatures, ensuring the safety and longevity of electrical systems.

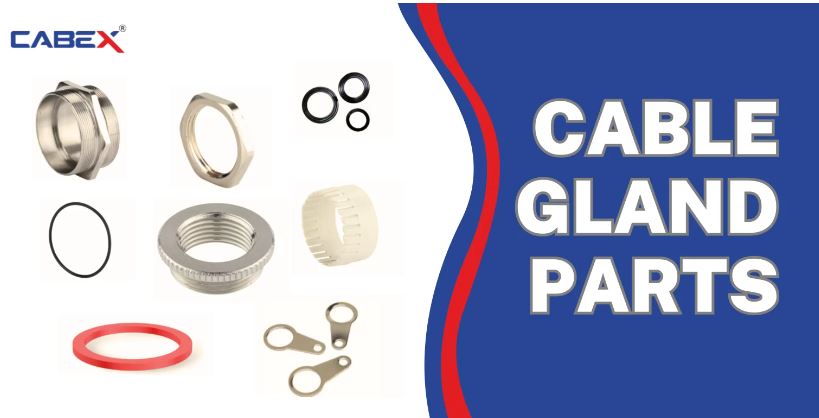

Let’s explore the key components of a standard cable gland:
- Cable Gland Body
The body of the cable gland is the main housing that holds and secures the cable. It is often cylindrical and made from durable materials such as brass, stainless steel, or high-grade plastic (like nylon). The body protects the internal wiring from environmental hazards like dust, dirt, moisture, and corrosive chemicals. It also provides the structure for mounting other components of the cable gland, making it the central piece.
- Sealing Ring or Gasket
The sealing ring, also known as a gasket, is a crucial component that ensures the cable gland provides a watertight seal. This ring is placed around the cable, compressed within the gland to create a tight fit, preventing moisture, dust, or contaminants from entering the enclosure. Sealing rings are typically made of rubber or elastomers like EPDM, which offer flexibility and strong sealing capabilities. For outdoor or marine applications, sealing rings may need to meet specific IP (Ingress Protection) ratings to ensure complete weather resistance.
- Locknut
The locknut secures the cable gland body to the enclosure or equipment. Once the cable gland is inserted into the entry point of the enclosure, the locknut is screwed on from the inside to lock the gland firmly in place. The locknut ensures that the cable gland remains securely fastened, even in environments subject to vibration or physical movement. Typically made of the same material as the gland body, such as brass, steel, or plastic, the locknut plays a vital role in maintaining the gland’s stability.
- Clamping Insert
The clamping insert is responsible for gripping the cable and providing strain relief, ensuring that any pulling or movement of the cable does not cause damage to the electrical connection. This insert is usually made from plastic or rubber and compresses around the cable when the gland is tightened, holding it securely in place. In some cable glands, the clamping insert is designed to allow a wide range of cable diameters to be used without compromising the gland’s performance.
In some cable glands, a thread sealing washer is placed between the gland body and the enclosure to prevent water or dust from entering through the threaded connection. This washer is typically made of materials like rubber or synthetic compounds that provide excellent sealing properties. It ensures that the gland is fully protected against environmental hazards even when the entry point is subject to external factors like rain or dust.
Material Considerations for Cable Gland Components
The choice of material for each component is critical to the performance and longevity of the cable gland. Common materials include:
- Brass: Durable and resistant to corrosion, brass is a popular choice for metallic cable glands, especially in industrial and outdoor applications.
- Stainless Steel: Offers excellent resistance to corrosion and extreme conditions, making it ideal for hazardous or harsh environments.
Conclusion
Cable glands are complex devices made up of several components, each contributing to the overall performance and protection of the electrical cable and system. Understanding these individual components, such as the body, sealing rings, locknuts, and clamping inserts, is essential for selecting the right cable gland for a particular application. Each component plays a role in ensuring that the cable is securely fastened, protected from environmental factors, and capable of withstanding strain and wear over time. By carefully selecting the right materials and configurations, cable glands can ensure the safety, reliability, and efficiency of electrical installations in a wide range of industries.
